Standard cylinder TDC

Standard cylinder TDC
Product Code : Standard cylinder TDC
Category : Standard Pneumatic Cylinder
Guarantee : 12 months
Origin : Made In China
Views : 517
Tải file
print   bookmark

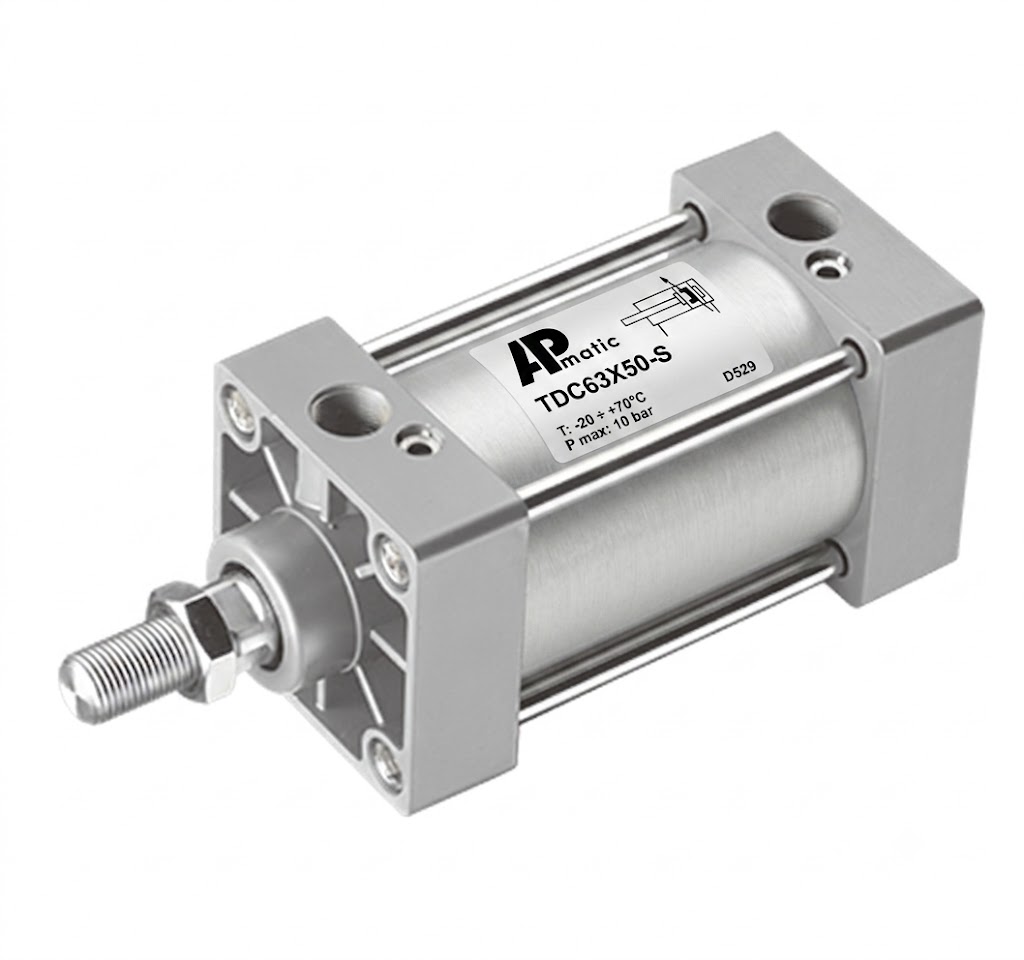

Standard cylinder TDC/FDC Series

  • TBC/XBC series pneumatic cylinder, bore size ranges from 32mm to 160mm. Moulds of cyliner front and rear cover are newly designed with better performance, and the anti-dust seal change from ORA structure(NBR material) to EU structure(TPU material), more abrasive, better dust protection, longer life. The standard pneumatic cylinder takes stronger self-lubricated bronze bearing, with much better lateral loading performance, and the special air cushion design makes the standard pneumatic cylinder more stable, long life. Available with different kinds of cylinder mountings, and optional with TBC type tie-rod pneumatic cylinder and XBC type mickey mouse pneumatic cylinder.
  • CAD 3D and download.

  • https://emc.partcommunity.com/3d-cad-models/sso/tbc-xbc-standard-cylinder-emc?info=emc%2Fcylinder%2Fstandard_cylinder%2Ftbc_xbc%2Ftbc_xbc_asmtab.prj&cwid=2368
