SD Series Compact Cylinder

SD Series Compact Cylinder
Product Code : SD Series Compact Cylinder
Category : Standard Pneumatic Cylinder
Guarantee : 12 tháng
Origin : Made In China
Views : 272
Tải file
print   bookmark

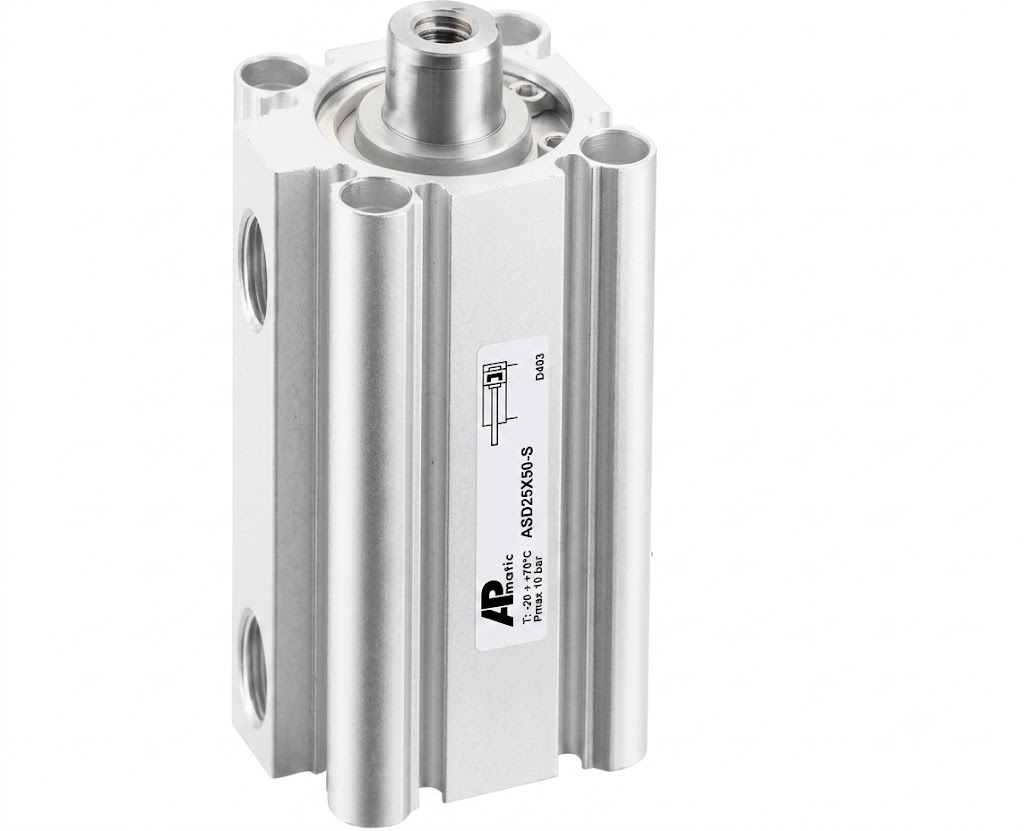

SD Series Compact Cylinder

  • SD series compact pneumatic cylinder, bore size ranges from 12-100mm. Stronger self-lubricating bronze bearings of the cylinder gives high guiding performance and concentricity, while piston rod and rod connection is designed with rotary riveting structure, ensuring high concentricity, smooth running and low starting pressure for the pneumatic cylinder. The compact cylinder is designed with slots for magnetic switches in 3 sides, easier to amount. Rear cap and body of the compact pneumatic cylinder are riveted together with high reliability, while front cap and barrel are connected by buckle for easier maintenance. Grease and all dynamic seals are imported to make longer life for the compact cylinder.
  • CAD 3D and download.

https://emc.partcommunity.com/3d-cad-models/sso/sd-compact-cylinder-emc?info=emc%2Fcylinder%2Fcompact_cylinder%2Fsd-series&cwid=2368

Same Products

  • ATC series

    ATC series

    Rotary Cylinder rack and pinion. Size from 50, 63, 80, 100. Rotary Angle 90 degree and 180 degree.
