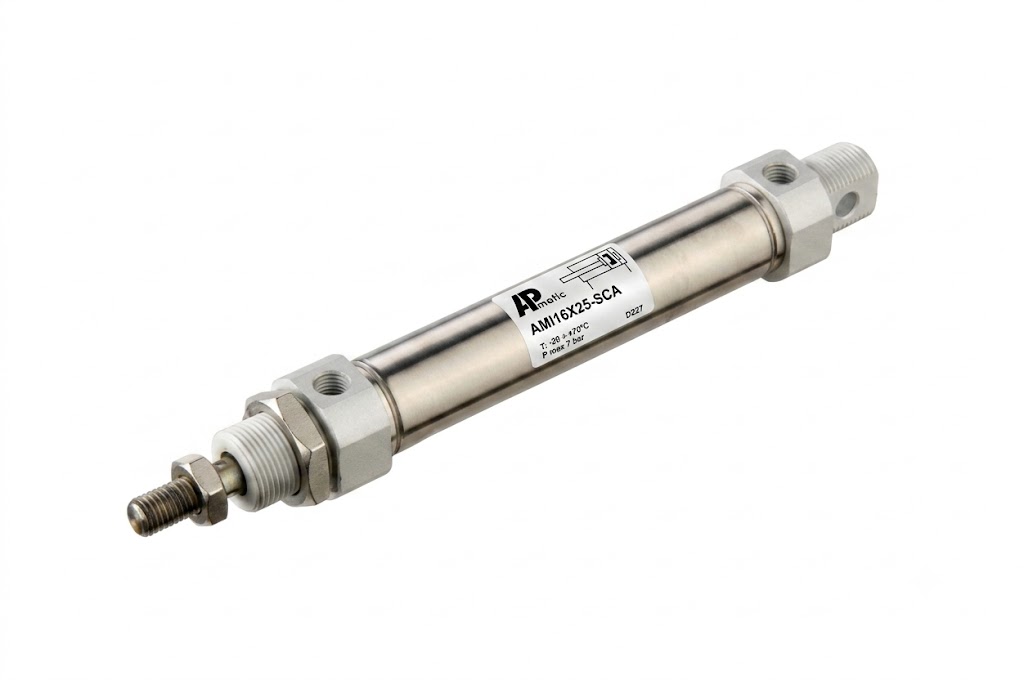

Round ISO 6432 cylinder

Round ISO 6432 cylinder
Product Code : XY LANH ISO 6432
Category : Standard Pneumatic Cylinder
Guarantee : 12 months
Origin : Made In China
Views : 2945
Tải file
print   bookmark


Mini-cylinders to ISO 6432 with a chamfered stainless steel barrel.
The cylinder head dimensions have been reduced for some sizes
so that they can be used where there are space restrictions.
Can be used with different types of sensors.
Available in various versions with a wide range of accessories:
• with or without magnet
• single and double acting – single or through rod
• with pneumatic cushioning (Ø16-20-25)
• gaskets made of NBR, POLYURETHANE, and FKM/FPM
(for high temperatures), and low-temperature gaskets
• special executions on request
• fixing accessories, guide units and mechanical rod locking

CAD 3D and download.

https://emc.partcommunity.com/3d-cad-models/sso/ia-iac-series-iso6432-mini-cylinder-emc?info=emc%2Fcylinder%2Fmini_cylinder%2Fia_iac&cwid=2368
