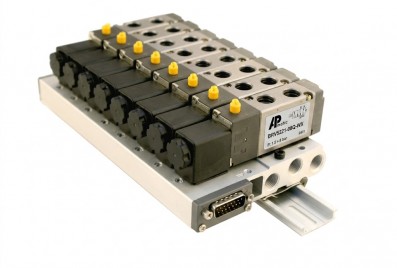

Mach 16 valves can be mounted on bases with pneumatic or electrical connection.
The electric contacts of the individual valves are connected by means of a printed circuit
board in a sealed conduit to a single connection point suitable for up to 16 controls.
The number 16 was chosen because the number of outputs of most PLC output boards
is 16 or a multiple of it.
The system has numerous alternatives and variants for a wide range of requirements:
• Base for monostable or bistable valves.
• Connection via a multiple connector or wired cable.
• Supply of individual parts or ready prepared bases or complete valve units
• The configuration can be modified at any time to convert bases for monostable
valves into bases for bistable valves.
• The return cable can be used to connect two monostable valve units to a single
multiple connector.
All versions are certified for electromagnetic compatibility and hence they bear
the CE mark. The system is prearranged for mounting a slave for field buses, which
can be added at any time. Valve units with multiple pneumatic/electrical connection
are supplied complete with valves and are tested.
System modularity means that the valve sequence can be ordered to meet your
own requirements (see key to codes).

CAD 3D and download.
